QN球型真空减压浓缩器球型多功能酒精回收塔中药材提取设备球形浓缩罐厂家图片参数-河南郑州玉祥机械设备厂

球形浓缩罐主要由浓缩罐主体、冷凝器、气液分离器、受液桶四个部分组成，可用于制药、食品、化工等行业对料液的浓缩、蒸溜及有机溶
媒的回收等工艺。由于采用减压浓缩，故浓缩时间短，且不会破坏热敏料的有效成份。本设备与物与物料接触部分均为优质不锈钢制造，具
有良好的耐腐蚀性能，经久耐用，符合GMP要求。
The spherical concentration tank is mainly composed of the concentration tank body, condenser, gas-liquid separator, and receiving tank. It can be used in industries such as pharmaceuticals, food, and chemicals for processes such as concentration, distillation, and recovery of organic solvents of the liquid materials. Due to the use of reduced-pressure concentration, the concentration time is short, and the effective components of heat-sensitive materials will not be damaged. The parts in contact with the material and the equipment are all made of high-quality stainless steel, which has good corrosion resistance, is durable, and complies with GMP requirements.

产品用途product use：

本装置适用于制药、食品、轻工、化工等行业的稀酒精回收。本装置可将30-50度的稀酒精蒸馏到90-95度，成品酒精度要求高，可加大回
流比，但相应成品产量降低，残液排放含醇度：≤2%，是专门回收酒精的好设备。
This device is applicable for the recovery of dilute alcohol in industries such as pharmaceuticals, food, light industry, and chemical engineering. This device can distill 30-50 degree dilute alcohol to 90-95 degree. The alcohol content of the finished product is high, so a higher reflux ratio can be adopted, but the corresponding production volume will decrease. The residual liquid discharge contains alcohol at a level of ≤2%. It is a very good equipment for recovering alcohol.

主要技术参数Specifications:

规格 Model		QN-300	QN-500	QN-700	QN-1000	QN-1500	QN-2000
蒸发量 Evaporation rate(kg/h)		70	120	145	195	250	350
容积 Volume(L)		300	500	700	1000	1500	2000
球内径 Inner diameter of the ball(mm)		800	990	1115	125	1400	1600
蒸汽压 Vapor pressure(Mpa)		0.15	0.15	0.15	0.15	0.15	0.15
夹层压力 Interlayer pressure(Mpa)		0.09	0.09	0.09	0.09	0.09	0.09
真空度 Vacuum degree(Mpa)		-0.05-0.08	-0.05-0.08	-0.05-0.08	-0.05-0.08	-0.05-0.08	-0.05-0.08
加热面积 Heating area(m2)		1.6	2	2.3	3.2	4	5.2
冷凝面积 Condensation area(m2)		3.9	5	5.8	8.2	11	16
耗水 Water consumption(T/H)		5	5	8	8	10	12
蒸汽进口 Steam inlet(mm)		32	32	32	40	40	40
水进口 Water inlet(mm)		32	32	40	40	50	50
集液罐容积 Volume of collection tank (L)		150	200	220	240	280	300
电热/蒸汽 Electric heating(KW)/Steam		24	27	27	36	蒸汽Steam	蒸汽Steam
设备重量 Weight		400	500	700	1000	1600	1950
外形尺寸 Overall Size	长Length(L)	1900	2030	2100	2335	2500	2750
	宽Width(W)	1100	1200	1300	1520	1700	1800
	高Height (H)	2300	2500	2600	2765	2900	3100

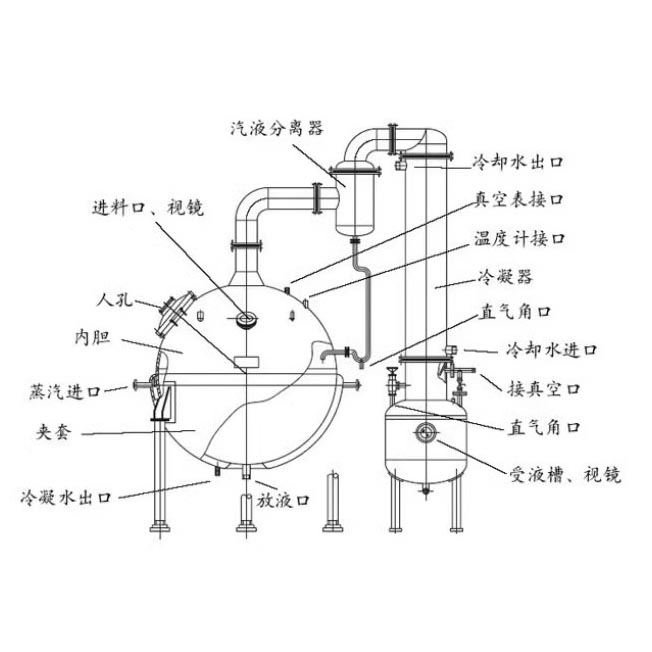

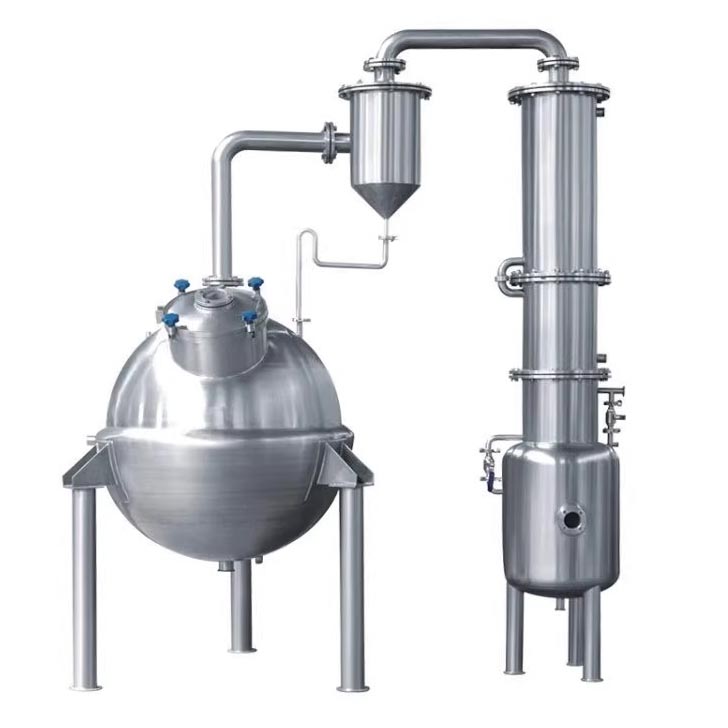

产品结构示意图

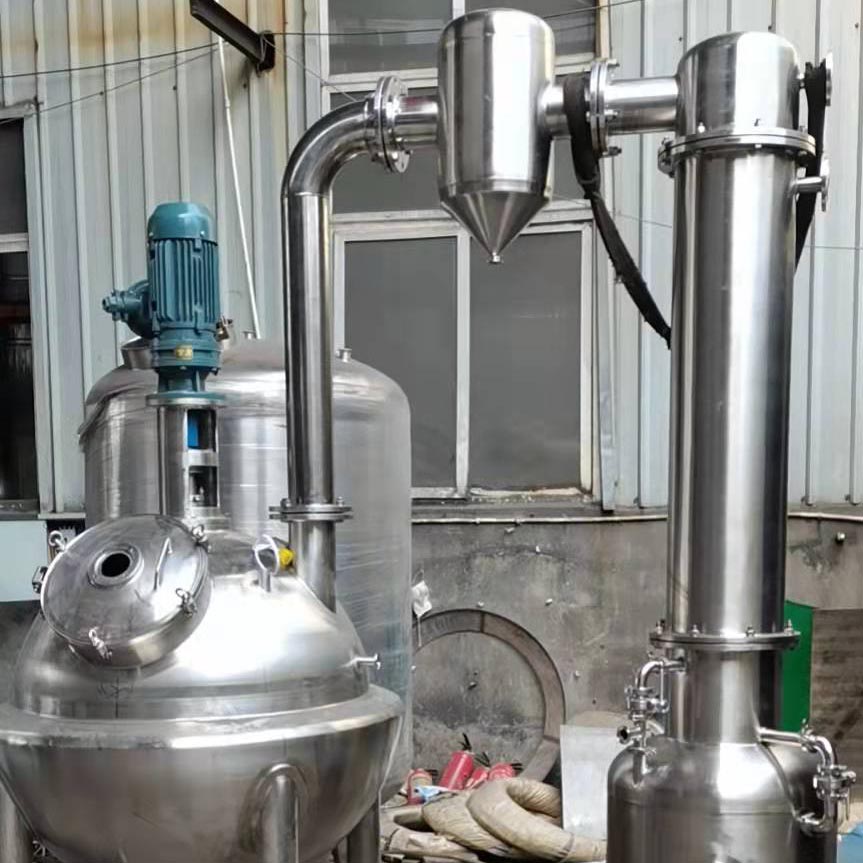

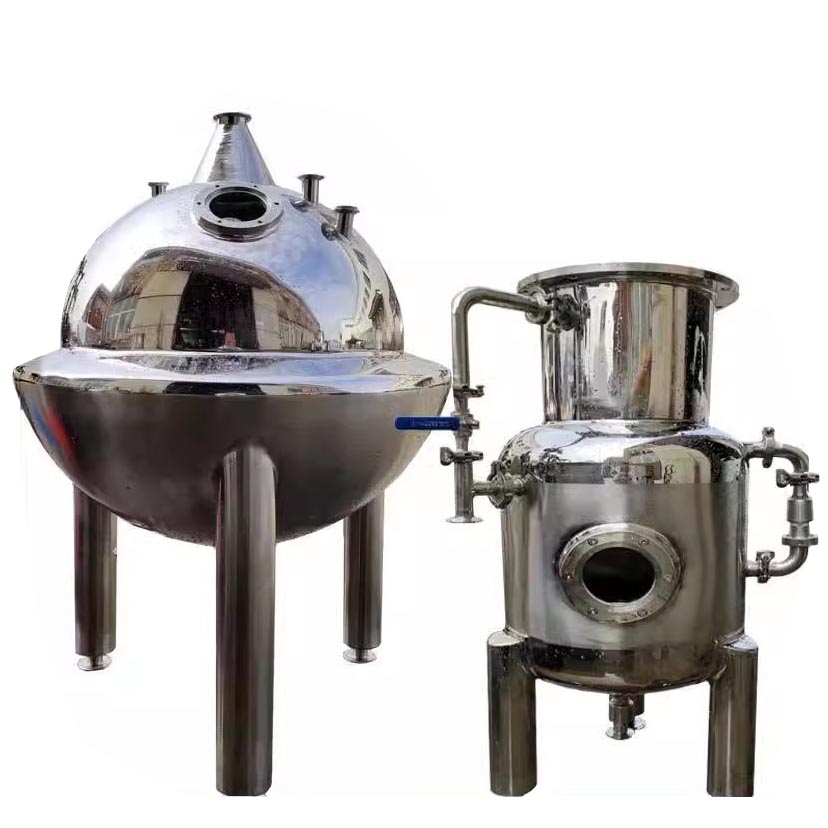

产品实拍
